- [4K Ultra HD Resolution]
- Equipped with a SONY 1/2.8-inch 8.5-megapixel high-quality image sensor (effective pixels:
8.29 million), delivering maximum 4K30fps Ultra HD video output.

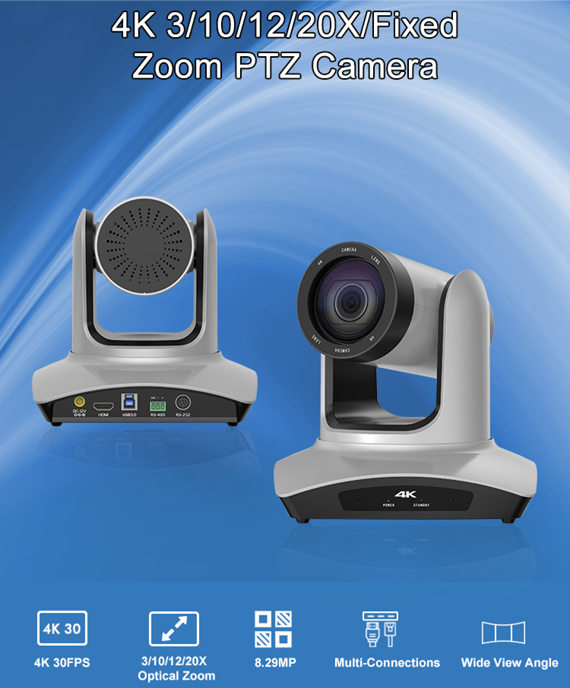

- [Fixed Focus, 3x, 10x, 12x, and 20x Lens Options]
- UH40ML: Fixed focus lens, 94° horizontal field of view
- UH40MN: 3x optical zoom, 96.5°horizontal field of view
- UH40MQ: 10x optical zoom, 67.5°horizontal field of view
- UH40MF: 12x optical zoom, 72.5°horizontal field of view
- UH40MH: 20x optical zoom, 58.7°horizontal field of view

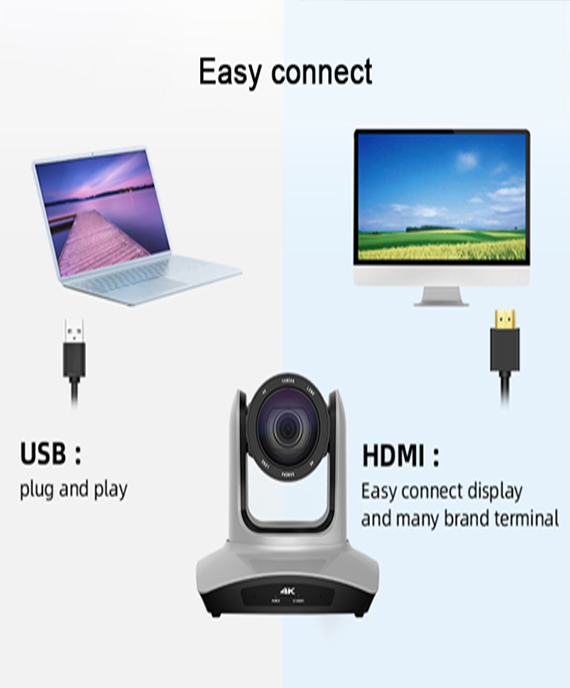

- [USB3.0+HDMI Dual Interfaces, Rich Application Scenarios]
- Supports simultaneous 4K30fps Ultra HD video output via HDMI and USB 3.0.
Low Light
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise
under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied to
significantly reduce image noise. Even under ultra-low light conditions, the image can still be
kept clean and clear, and the image signal-to-noise ratio is higher than 50dB.
Remote
Control
Multiple cameras can be controlled using RS232 and RS485 serial ports.
Infrared Remote
Control Signal Transparent Transmission Function
In addition to receiving its own infrared remote control signal, it can also receive signals
from consumer infrared remote controls and send them to the video conferencing terminal through
the VISCA port.
Multiple Video
Compression Standards
Different interfaces support multiple video compression formats such as YUY2, MJPG
Multiple Control
Protocols
Supports VISCA , PELCO P/D protocols, and automatic identification protocols
Various
Installation Methods
Multiple installation methods, can be installed on desktop, ceiling, or wall.

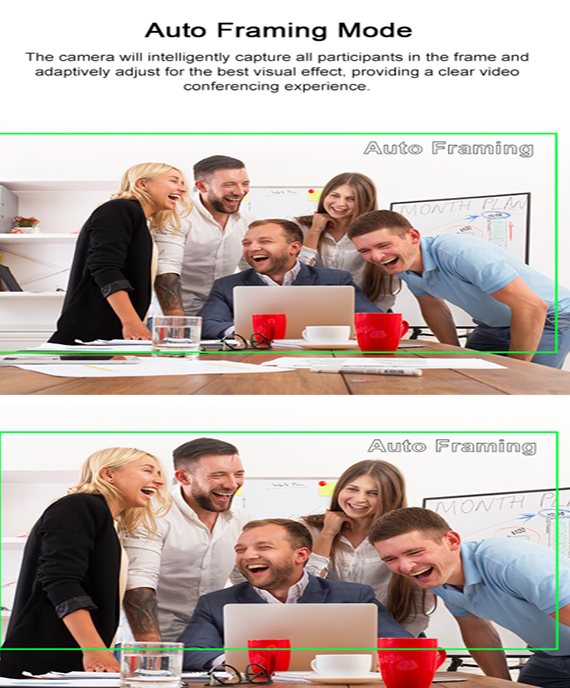

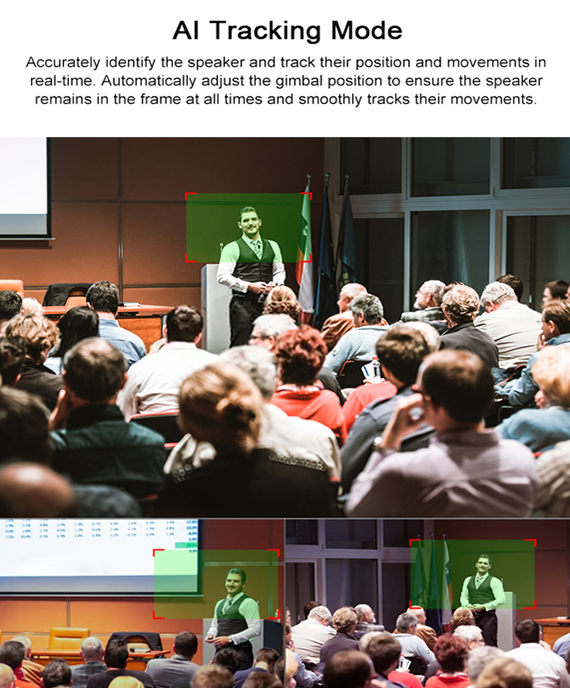

Next-Gen AI Human
Tracking Algorithm
Features AI tracking and auto-framing.
(*Note:
With AI off: HDMI and USB 3.0 support simultaneous 4K30 output.
With AI on: HDMI supports up to 1080p60, USB 3.0 supports up to 1080p30.*)
|
Camera
|
|
Video Format
|
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50
|
|
Image Sensor
|
SONY 1/2.8 " CMOS
|
|
Pixels
|
8.5 Megapixels , Effective Pixels 8.29 Megapixels
|
|
Scanning Method
|
Line by Line
|
|
Lens Focal Length
|
UH40ML: Fixed focus lens
UH40MN: 3X Optical Zoom, f=3.2mm(W)~12.8mm(T), F1.8~F3.6
UH40MQ: 10X Optical Zoom, f=4.32mm(W)~40.9mm(T)
UH40MF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68
UH40MH: 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13
|
|
Horizontal Field of View
|
UH40ML : 94°
UH40MN : 96.5°(W)~29.3°(T)
UH40MQ : 67.5°(W)~7.6°(T)
UH40MF : 72.5°(W)~6.57°(T)
UH40MH : 58.7°(W)~3.2°(T)
|
|
Vertical Field of View
|
UH40ML : 62°
UH40MN : 51.5°(W)~16.5°(T)
UH40MQ : 40.2°(W)~4.3°(T)
UH40MF : 42.06°(W)~3.76°(T)
UH40MH : 32.2°(W)~1.8°(T)
|
|
Focus Method
|
UH40MN/MQ/40MF/40MH:Automatic / Manual
|
|
Shutter
|
1/25s ~ 1/10000s
|
|
Minimum Illumination
|
0.1 Lux @ (F1.8, AGC ON)
|
|
Exposure
|
Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority
|
|
White Balance
|
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual
|
|
Backlight
Compensation
|
Support
|
|
Digital Noise
Reduction
|
2D&3D Digital noise reduction
|
|
Signal-to-Noise Ratio
|
=50dB
|
|
Pan/Tilt
|
|
Pan Range
|
±170°
|
|
Tilt Range
|
-30°~+90°
|
|
Pan Speed
|
1°~60°/s
|
|
Tilt Speed
|
1°~60°/s
|
|
Number of Preset Positions
|
The remote control can be set to 9, and the keyboard can be set to up to
255 preset
positions.
|
|
Preset Position Accuracy
|
0.1°±10%
|
|
Flip
|
Support
|
|
AI
|
|
AI Tracking
|
Support
|
|
Auto Framing
|
Support
|
|
Tracking Size
|
Support
|
|
Tracking Sensitivity
|
Support
|
|
AI Guard Position
|
Support
|
|

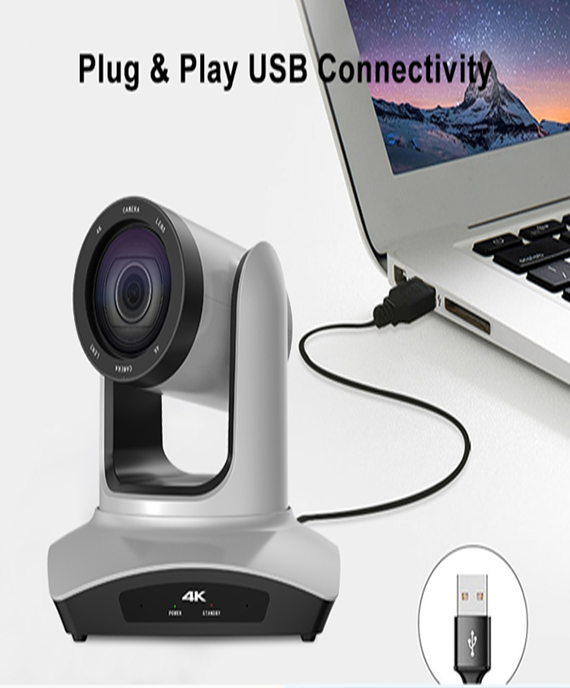

USB
|
|
Protocol
|
UVC 1.1
|
|
Operating System
|
Window7 and above, MacOS, Linux, Android
|
|
Video Encoding Format
|
YUY2, MJPEG
|
|
Resolution
|
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576,
720*480,
640*480, 640*360, 352*288, 320*240
|
|
Video Frame Rate
|
Up to 30
|
|
UVC PTZ control
|
Support
|
|

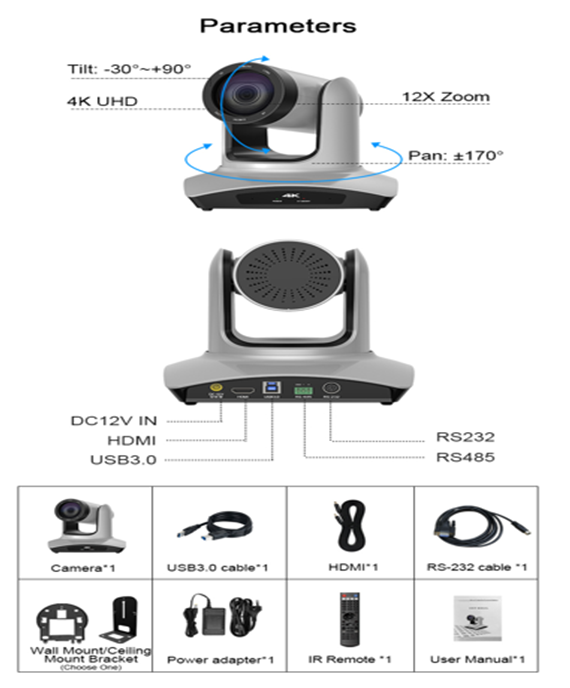

Input and Output Interface
|
|
HDMI Interface
|
1 way, HDMI: version 1.4
|
|
USB Interface
|
1 way, USB3.0, Type-B socket
|
|
Communication Interface
|
1 channel, RS232 IN: 8-pin small DIN, maximum distance 30 meters,
VISCA/Pelco-D/Pelco-P protocol
1 channel, RS485 IN: 3-core Phoenix port, maximum distance 1200 meters,
VISCA/Pelco-D/Pelco-P protocol
|
|
Power Interface
|
JEITA RC-5320A Type 4
|
|
Others
|
|
Input voltage
|
DC 12V
|
|
Input Current
|
Maximum 0.8A
|
|
Power consumption
|
Maximum 10W
|
|
Operating Temperature
|
0~40?
|
|
Stored Temperature
|
-10~60?
|
|
Color
|
Silver
|
|
Size
|
(width) 180* (depth) 180* (height) 175mm
|
|
Weight
|
1.2kg
|
|
Accessories
|
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C
Cable, Ceiling
bracket, Wall bracket(Optional)
|
- 4K Ultra HD Output: Using a new generation of SONY 1/1.8-inch
high-quality
CMOS, it can achieve maximum 4K60 ultra-high-definition broadcast and image output,
and
record larger scenes.
- 25X Optical Zoom Lens: Equipped with a 25X ultra-high-definition
optical
lens and supporting a mainstream horizontal viewing angle of 59.2°, it meets the
needs
of scenarios such as video conferencing in large auditoriums and blackboard writing
in
lecture theaters, restoring fine details.
- USB 3.0 + HDMI + LAN + SDI Full Interfaces, Rich Application
Scenarios:
Compatible with all mainstream video output interfaces. HDMI + USB 3.0 Type-B +
12G-SDI +
LAN can simultaneously output 4K60 resolution, while 3G-SDI outputs 1080p60
resolution.
- Low Light Performance: The ultra-high signal-to-noise ratio CMOS
sensor effectively reduces image noise under low-light conditions. 2D & 3D
digital noise
reduction further improves clarity. Even under ultra-low light, images remain clean
and
clear, with signal-to-noise ratio higher than 50 dB.
- Infrared Remote Control Signal Transparent Transmission Function:
In
addition to receiving its own infrared remote-control signals, it can receive
signals from a
user’s infrared remote control and send them to the video conferencing terminal
through the VISCA port.
- Multiple Video Compression Standards: Supports YUY2, H.265, MJPG,
and H.264
formats.
- Multiple Network Protocols Support: ONVIF, SRT, RTSP, RTMP, Free D,
NDI®|HX2, NDI®|HX3 (optional), and other network protocols.
Note: Free D
protocol is continuously updated; please refer to the shipping version.
- Multiple Control Protocols Support: VISCA (including VISCA over IP
and
VISCA TCP), PELCO-P/D protocols, NDI® (optional), and automatic protocol
recognition.
- Built-in OLED Display: Real-time display of camera IP address and
HDMI
output resolution.
- Next-Generation Human & Facial Recognition Tracking Algorithm:
Supports
four AI tracking modes: AI Tracking, Auto Framing, Zone Tracking, and Hybrid
Tracking.
Gesture control supports five functions: turning tracking on/off, switching tracking
targets, customizing tracking size, and zooming in/out via gestures.
|
|
|
|
|
