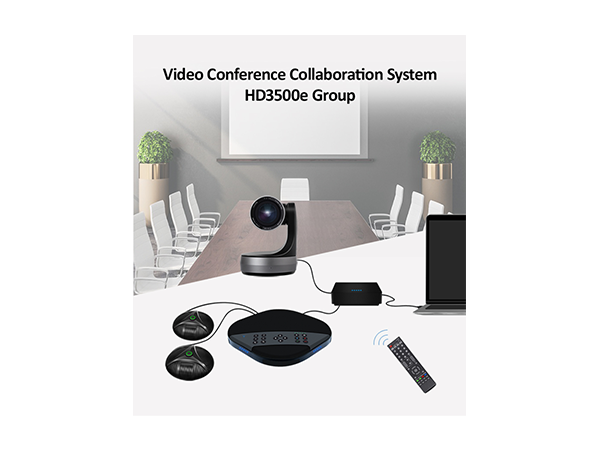

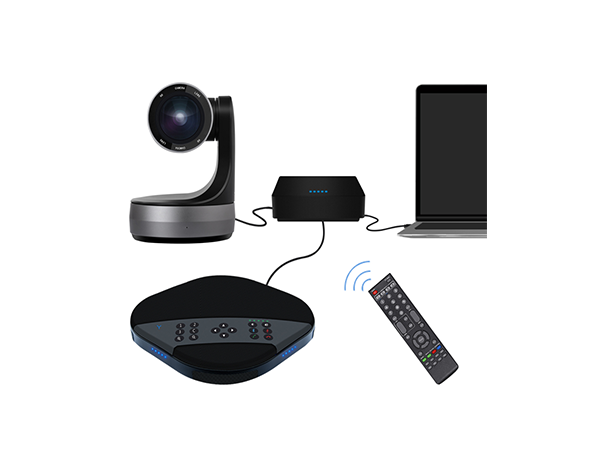

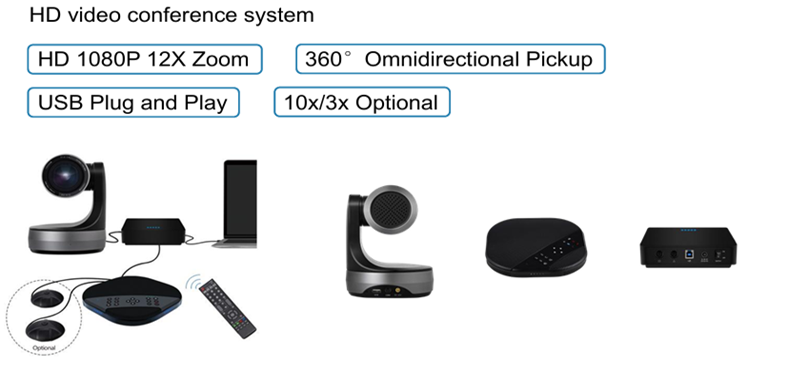

Video Conference Collaboration System
-
-
-
-
|
Video Conference Camera
|
|
Parameter
|
Details
|
|
Image Sensor
|
SONY 1/2.8" Progressive CMOS
|
|
Effective Pixels
|
3.1 Megapixels
|
|
Resolution (HD)
|
MJPG/H.264: 1920x1080, 1280x720, 720x576, 640x480,
320x240
|
|
YUY2: 1280x720, 720x576, 640x480, 320x240
|
|
Lens
|
12x, f = 3.9mm (W) - 46.8mm (T)
|
|
Horizontal View Angle
|
72.5° (W) ~ 6.5° (T)
|
|
Focus System
|
Auto / Manual
|
|
Minimum Illumination
|
0.5 Lux
|
|
Shutter
|
1/25 ~ 1/10000 s
|
|
Gain
|
Auto / Manual
|
|
White Balance
|
Auto / Manual / Indoor / Outdoor / One-push / ATW
|
|
Image Effect
|
Full color / Image flip
|
|
S/N Ratio
|
= 50 dB
|
|
Pan
|
355° (Max speed: 80°/s)
|
|
Tilt
|
-30° to +90° (Max speed: 60°/s)
|
|
Size
|
131 x 131 x 175 mm (L x W x H)
|
|

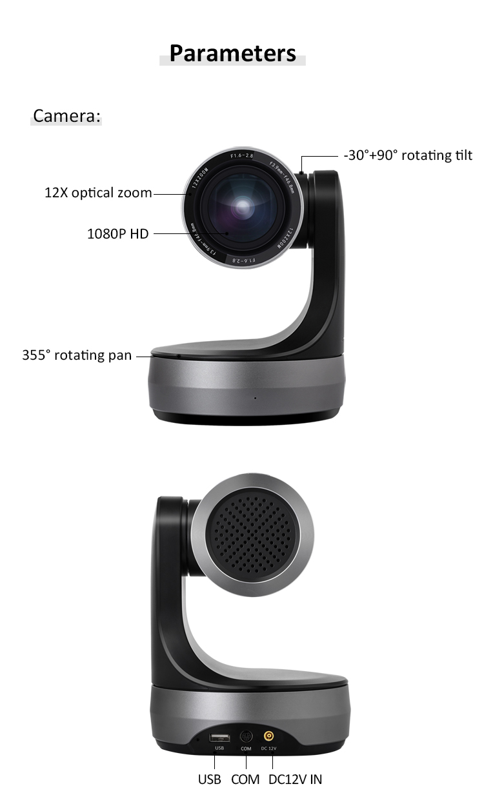

Camera
|
|
Resolution
|
MJPG/H.264:320*240,640*480,720*576,1280*720,1920*1080
YUY2:320*240,640*480,720*576,1280*720
|
|
Image Sensor
|
SONY 1/2.8” Progressive CMOS
|
|
Effective Pixels
|
3.1 Megapixels
|
|
Signal
|
PAL/NTSC
|
|
Lens
|
12x, f=3.9mm(w) ~ 46.8mm(T)
|
|
Horizontal View Angle
|
72.5°(W)~6.5°(T)
|
|
Focus System
|
Auto/Manual
|
|
Minimum Illumination
|
0.5 Lux
|
|
Shutter
|
1/25~1/10000s
|
|
Gain
|
Auto/Manual
|
|
White Balance
|
Auto/Manual/ Indoor/Outdoor/One push/ATW
|
|
lmage Effect
|
Full color/Image flip
|
|
S/N Ratio
|
=50db
|
|
Pan
|
355°(max.speed:80°/s)
|
|
Tilt
|
-30° to +90°(max. speed: 6o°/s)
|
|
Size
|
(L)131x(W)131x(H)175mm
|
|

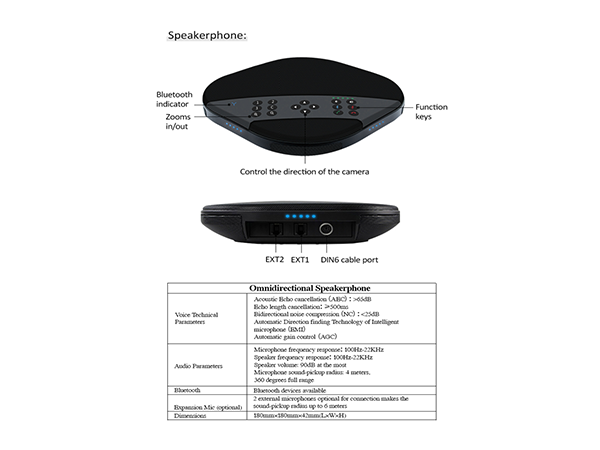

Omnidirectional Speakerphone
|
|
Voice Technical
Parameters
|
Acoustic echo cancellation (AEC) : >65dB
Echo length cancellation : =500ms
Bidirectional noise compression (NC) : <25dB
Automatic direction finding Technology of Intelligent microphone (EMI)
Automatic gain control (AGC)
|
|
Audio parameters
|
Microphone frequency response : 100Hz-22KHz
Speaker frequency response : 100Hz-22KHz
Speaker volume: 90dB at the most

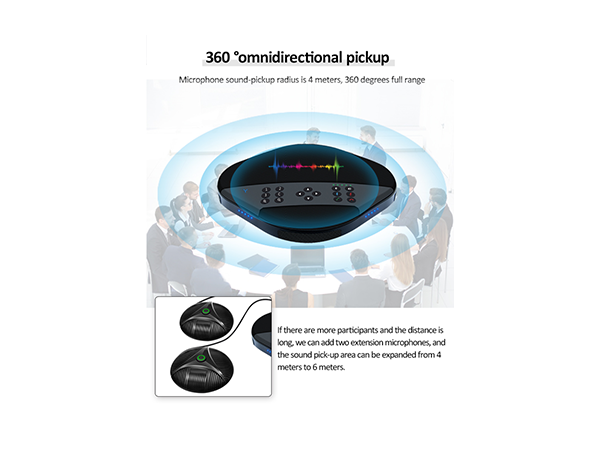

Microphone sound-pickup radius: 4 meters
360 degrees full range
|
|
Protocol
|
UVC 1.1
|
|

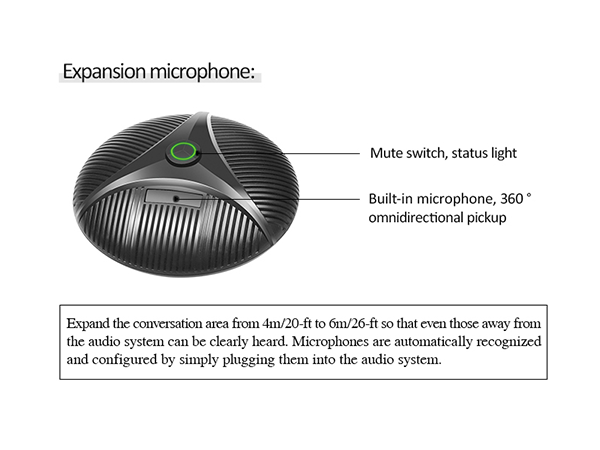

Expansion Mic (optional)
|
2 external microphones optional for connection makes the sound-pickup
radius up
to 6 meters
|
|
Dimensions
|
180mmx180mmx42mm(LxWxH)
|
|

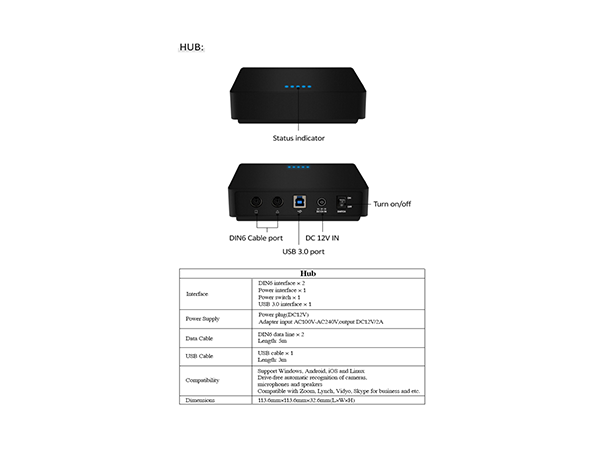

Hub
|
|
Interface
|
DIN6 interface x 2
Power interface x 1
Power switch x 1
USB interface x 1
|
|
Power supply
|
Power plug(DC12V)
Adapter input AC100V-AC240V,output DC12V/2A
|
|

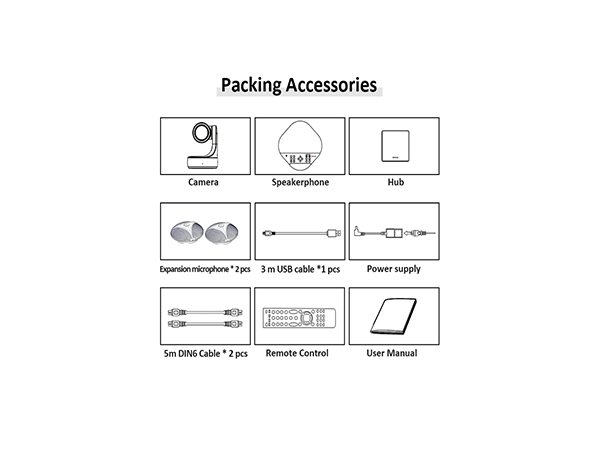

Data Cable
|
DIN6 data line x 2 Length: 5m
|
|
USB cable
|
USB cable x 1 Length: 3m
|
|
Compatibility
|
Support Windows, Android, iOS and Linux Drive-free automatic recognition
of
cameras, microphones and speakers Compatible with Zoom, Lynch, Vidyo,
Skype for
business and etc.
|
|
Dimensions
|
113.6mmx113.6mmx32.6mm(LxWxH)
|

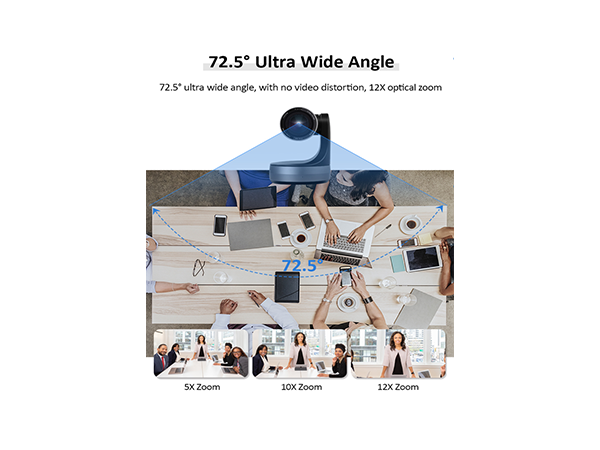

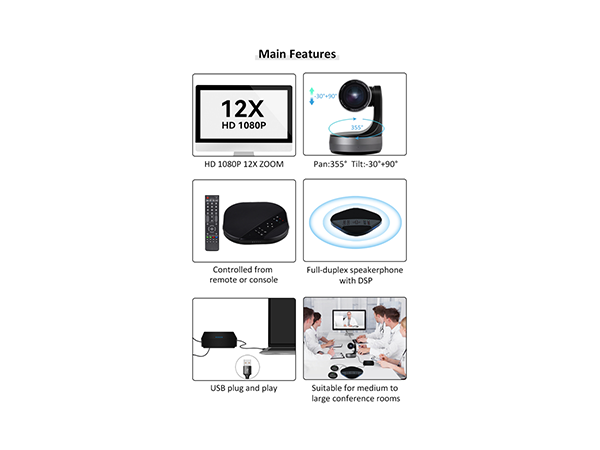

- HD 1080p Video Quality: 30 frames per second; 72.5°-6.5°
field of view with mechanical 355° pan and -30° to +90° tilt; 12x
lossless HD zoom.
- Omnidirectional Speakerphone: Full-duplex audio system; spacious
audio;
beam-forming technology with 4 built-in unidirectional microphones; acoustic echo
cancellation; noise reduction technology.

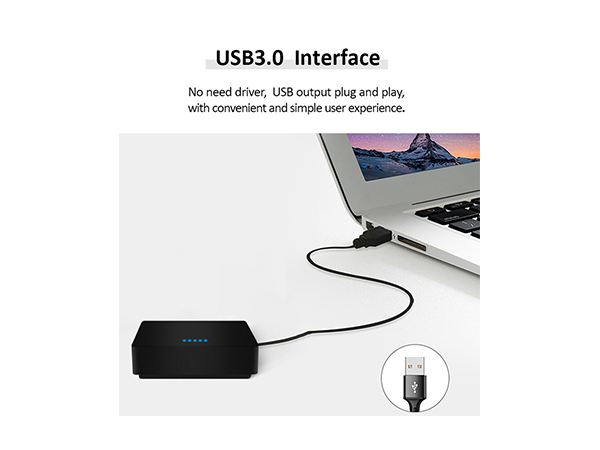

- Hub: Plug-and-play audio system setup; compatible with Mac® and PC;
works with most UC and video conferencing applications; broad application
compatibility.
Compatible with common IM and conferencing apps such as Zoom, Polycom, Microsoft
Lync, Cisco
WebEx, WeChat, Skype, Vidyo, and Skype for Business.
|
|
|
|
|
